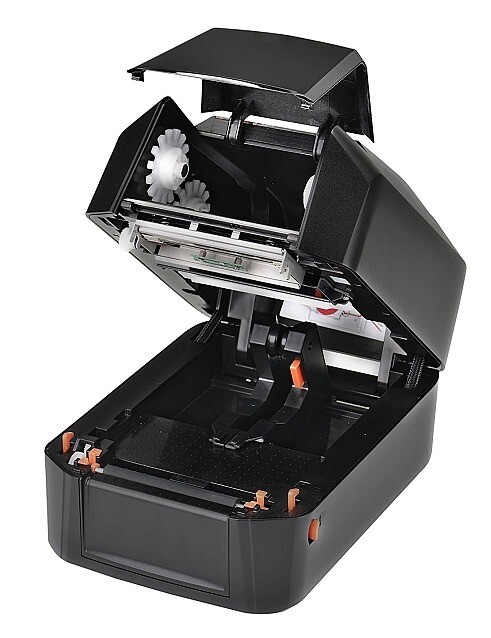

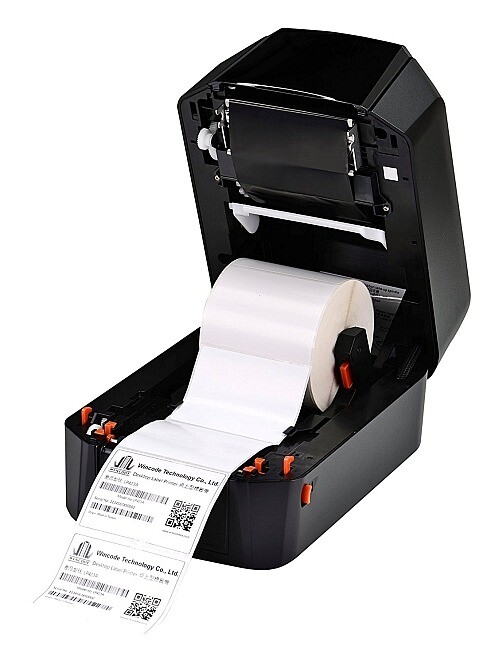

Desktop Label Printer Wincode LP423A

LP423A is the advanced model of LP423N, it not only has the same features of LP423N, but have LCD display with multiple languages supported. The built-in buzzer sound also reminds operator in noisy environment. The SD card slot can enlarge the memory storage up to 32GB.  This model can be adopted in extensive applications such as manufacturing, retail, healthcare, government, office automation, warehouse management, asset management, logistics labels, and many many more.

Printing method              Thermal Transfer /Thermal Direct

Resolution          203 DPI

Max. print speed             127 mm (5″)/ Sec

Max. print width              108 mm (4.25″)

Max. print length            4572 mm (180”)

Enclosure            Double-walled plastic

Physical dimension        220mm(W) x 198mm(H) x 288mm(D) 8.7″(W) x 7.8″(H) x 11.3″(D)

Weight 2.5 kg

Label roll capacity           127 mm (5″) OD

Ribbon spec.      300 m, Max. OD 67 mm, 1″ core

100 m, Max. OD 38.25 mm, 0.5″ core

Ribbon width    25.4 mm ~ 110 mm (1″~ 4.3″)

Processor            32-bit RISC CPU

Memory              8MB Flash-ROM, 16MB SDRAM, SD card slot for expansion up to 32GB

Power   External universal power supply , Input: AC 100-240V, 2.5A, 50-60Hz, Output: DC 24V, 2.5A, 60W

User Interface   4 buttons, 2 LED , 1 LCD (2.13”, Resolution: 128*64), 1*Buzzer

Communication                               USB 2.0, RS-232, USB Host, Centronics, Ethernet, BLUETOOTH (option)

Sensors                                Transmissive and reflective gap sensors、Ribbon end sensor、Head open sensor、Paper near end sensor (optional)

Internal fonts    7 kinds of bitmap fonts

Bar code              1D barcode:Code 11, Code 39, Code 93, Code 128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2-of-5, ITF-14, MSI Pleassy, PostCode, Telepen, UPC-A, UPC-E, UCC-128, Channel Code, Code 2 of 5 Data Logic, Code 2 of 5 IATA, Code 2 of 5 Industrial, Code 2 of 5 Matrix, Code 32, ISBN, LOGMARS, Pharmacode, Pharma Zentralnummber

2D barcode:QR Code, Micro QR Code, PDF417, Micro PDF417, Code 16K, Code 49, Aztec Code, Data Matrix, Grid Matrix, MaxiCode, Code One, Han Xin Code, Dot Code, Pharmacode 2-track

GS1 Barcode (without composite code): GS1 QR Code, Data Matrix, ITF-14

GS1 Barcode (with composite code): GS1-128 (UCC/EAN-128), EAN-8, EAN-13, UPC-A, UPC-E, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded Omnidirectional, GS1 DataBar Expanded Stacked Omnidirectional

Printer language              WPL (ZPL, EPL, TSPL, DPL…auto switch)、BASIC Program for Stand-alone

Media type        Continuous, die-cut, tag, fan-fold, gap, notch, black mark

Dealer option    Peeler, Cutter, External label stand

Label width        Standard: 15~120mm (0.59″~4.72″)

With Cutter: 15~117mm (0.59″~4.61″)

External Label Stand: 15~115mm (0.59″~4.53″)  Label thickness

0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)

Thick label specified printer: support 0.24 ~ 0.3 mm

Label core           25.4 mm (1″)

Label length       3 ~ 4,572 mm (0.12″~ 180″)

Real time clock RTC (with battery CR2032)

Storage condition            -20 ~ 50°C, 10~ 90% (non-condensing)

Operation condition      5 ~ 40°C, 25 ~ 85% (non-condensing)

Safety regulation             CE Class B, FCC Class B, CCC, CB, BIS, KC

Bundled software           WinLabel labelling software、Windows printer driver、Printer utility、DLL SDK library、EXE executive AP for batch print

Support platform:Windows XP, Vista, 7, 8, 8.1, 10Server 2003, 2008, 2012, 2012R2

Package               Quick installation guide 、USB 2.0 cord、Power cord、External universal power supply adapter、Ribbon spindle x 2、Paper core
